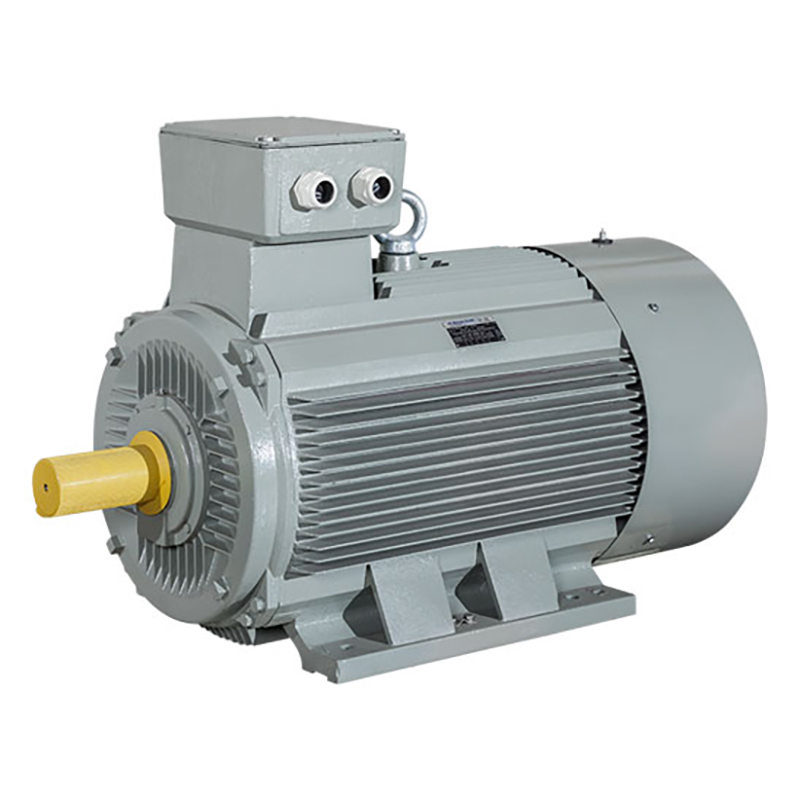

AC MOTOREN FCMP 200 L 4/PHE Drehstrom-Asynchronmotor
The FCMP 200 L 4/PHE model from AC Motoren is a high-efficiency three-phase asynchronous motor commonly used in industrial applications. This motor stands out with its robust grey cast iron body and high efficiency class IE3.
• Pump Systems: Used for transferring water and other liquids.
• Fan and Ventilation Systems: Ideal for providing air flow.
• Conveyor Belts: Used in material handling processes.
• Compressors: Preferred in air and gas compression operations.
• Industrial Machinery: Widely used in general industrial applications.
The FCMP 200 L 4/PHE is a three-phase asynchronous motor with a grey cast iron body and an IE3 high-efficiency class. The motor operates at 30 kW power output with a 4-pole design, achieving speeds of 1475 rpm (50 Hz) and 1770 rpm (60 Hz). It has an IP55 protection class, ensuring reliable performance in harsh industrial environments. Additionally, it is equipped with a 150°C PTC thermistor protection.
• Power: 30 kW
• Number of Poles: 4
• Operating Voltage: 400/690 V (50 Hz), 460/795 V (60 Hz)
• Frequency: 50/60 Hz
• Efficiency Class: IE3
• Protection Class: IP55
• Insulation Class: F/B
• Body Material: Grey cast iron
• Shaft Dimensions: 55 mm diameter, 110 mm length
• Weight: 284 kg
• Operating Temperature Range: -20°C to +40°C
• Mounting Type: B35 flange mounting
