ATS 000880 600X640X20 G Air Filter
- Metal industry
- Construction sector
- Wind energy
- Forestry
- Mining
- Pulp and paper industry

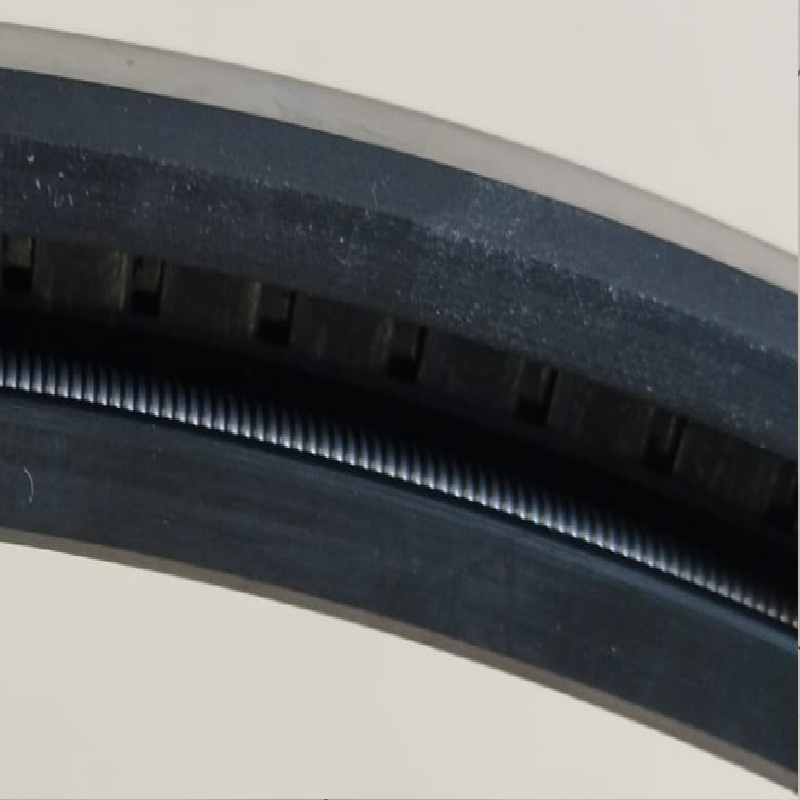

The ATS 000880 600X640X20 G is a radial shaft seal designed for heavy industrial applications. It is suitable for housings with a cover plate and features a robust design. It has a reinforced hard rubber body and spring-loaded sealing lips.
- Shaft diameter: 600 mm
- Housing bore diameter: 640 mm
- Housing groove width: 20 mm
- Maximum operating temperature: 200 °C
- Minimum operating temperature: -18 °C
- Circumferential speed: 10 m/s
- Rotational speed: 318 rpm
- Sealing lip material: Fluoro rubber (FKM)
