BOFA A1030154 Main filter for laser extraction AD Access
- Laser cutting and engraving machines
- Industrial fume and gas filtration systems
- BOFA AD Access laser fume extraction units

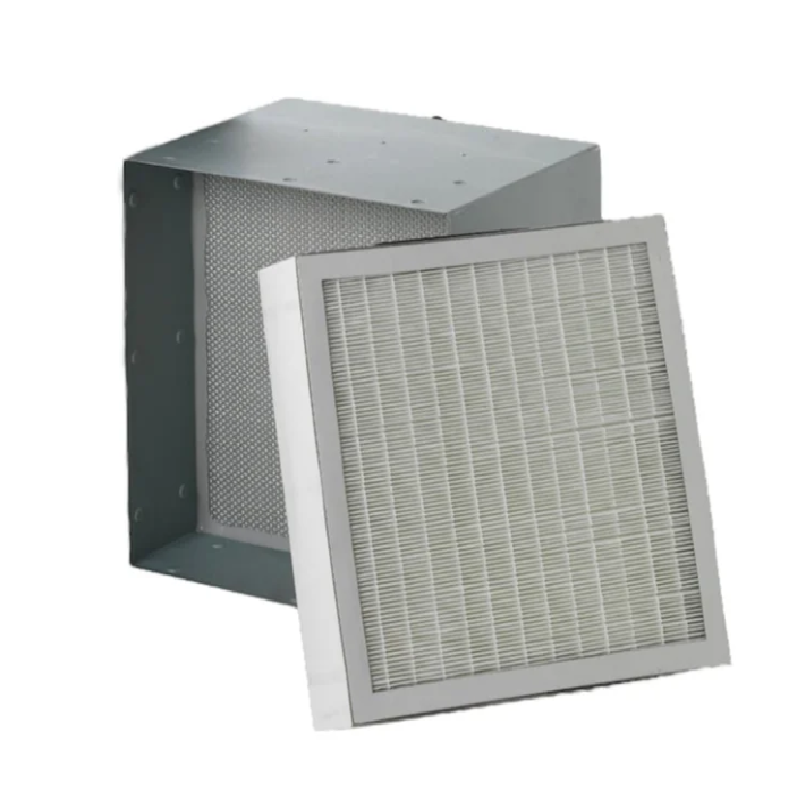

The BOFA A1030154 (also known as 1UA1030154) is a combined filter designed for the AD Access laser fume extraction system. It integrates both HEPA and gas filtration layers. With pleated glass fiber and impregnated activated carbon, it achieves 99.997% efficiency at removing 0.3 micron particles. The filter features a zinc-plated steel housing, polyurethane sealant, and a neoprene gasket for secure integration
- Dimensions: 290 x 290 x 290 mm (H x W x D)
- Filter Media:
- Primary: Pleated glass fiber
- Secondary: Treated activated carbon (~7 kg)
- Efficiency: 99.997% @ 0.3 microns
- Housing: Zinc-plated steel
- Sealant: Polyurethane
- Connection: Neoprene gasket
- Pre-filter not included (sold separately)
