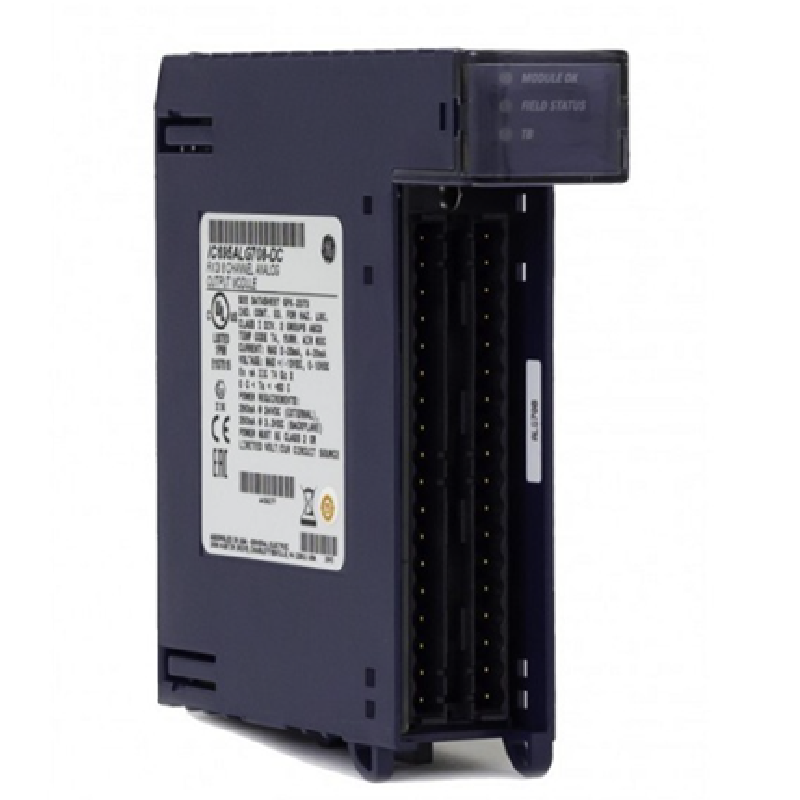

GE FANUC IC695ALG708 ANALOG OUTPUT MODUL
The GE FANUC IC695ALG708 is used in industrial automation and process control systems for precise control of analog signals. It is compatible with RX3i PACSystem and offers various voltage and current output configurations.
You can become a member here to see prices and take advantage of other privileges.
This module provides 8 analog output channels, configurable for voltage or current output. Designed for industrial environments, it features high resolution and fast update rates.
Number of Channels: 8
Output Signals: Voltage: 0-10V, ±10V; Current: 0-20mA, 4-20mA
Resolution: ±10V: 15.9 bits, 0-10V: 14.9 bits
Power Consumption: 375mA @ +3.3V DC, 315mA @ +24V DC
Compatibility: RX3i CPU (Firmware 3.5 or later)
