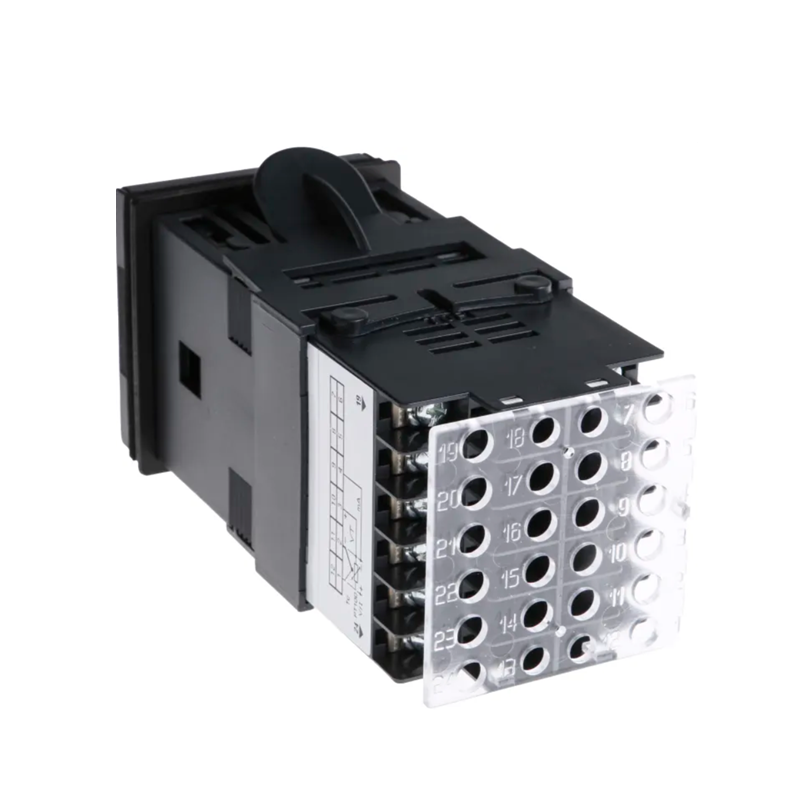

GEFRAN F000051 600-R-R-0-0-0 Temperature Controller, 2 Outputs, Relay, 100 V ac, 240 V ac , 48 x 48 (1/16 DIN)mm
GEFRAN F000051 600-R-R-0-0-0 Temperature Controller, 2 Outputs, Relay, 100 V ac, 240 V ac , 48 x 48 (1/16 DIN)mm
GEFRAN F000051 600-R-R-0-0-0 Temperature Controller, 2 Outputs, Relay, 100 V ac, 240 V ac , 48 x 48 (1/16 DIN)mm
GEFRAN F000051 600-R-R-0-0-0 Temperature Controller, 2 Outputs, Relay, 100 V ac, 240 V ac , 48 x 48 (1/16 DIN)mm

GEFRAN F000051 600-R-R-0-0-0 Temperature Controller, 2 Outputs, Relay, 100 V ac, 240 V ac , 48 x 48 (1/16 DIN)mm

GEFRAN F000051 600-R-R-0-0-0 temperature controller is used in various industrial applications where precise temperature control is required. Key application areas include:

  • Plastics Processing Machinery: Control of heating zones in injection molding, extrusion, and thermoforming machines.
  • Ovens and Furnaces: Temperature control in industrial ovens, drying ovens, and laboratory furnaces.
  • Packaging Machines: Temperature control in heat sealing and shrinking processes.
  • Food Processing Equipment: Temperature management in cooking, pasteurization, and sterilization processes.
  • HVAC Systems: Temperature control in heating, ventilation, and air conditioning systems.
  • Laboratory Equipment: Precise temperature setting in incubators, water baths, and other laboratory devices.
You can become a member here to see prices and take advantage of other privileges.
Ask a question
GEFRAN F000051 600-R-R-0-0-0 is a 2-output, relay-based temperature controller. Its compact 48 x 48 mm (1/16 DIN) size allows for easy panel mounting. It can operate within a wide supply voltage range of 100 V AC to 240 V AC. The two relay outputs can be used for different control functions such as heating and cooling. Its user-friendly interface and simple parameter settings make it easy to program and commission.
  • Model Number: F000051
  • Product Series: 600
  • Output 1: R (Relay output)
  • Output 2: R (Relay output)
  • Alarm Output: 0 (No alarm output)
  • Second Alarm Output: 0 (No second alarm output)
  • Auxiliary Output: 0 (No auxiliary output)
  • Control Mode: PID control (with adjustable parameters)
  • Input Type: Thermocouple (J, K, S, R, T, B, E, N), RTD (Pt100), and linear inputs (mV, V, mA)
  • Supply Voltage: 100 V AC - 240 V AC, 50/60 Hz
  • Dimensions: 48 x 48 x depth (mm) (1/16 DIN standard)
  • Mounting: Panel mounting
  • Operating Temperature: Specific industrial temperature range (refer to product datasheet)
  • Protection Class: Specific IP protection class for the front panel (refer to product datasheet)
  • Display: LED display
