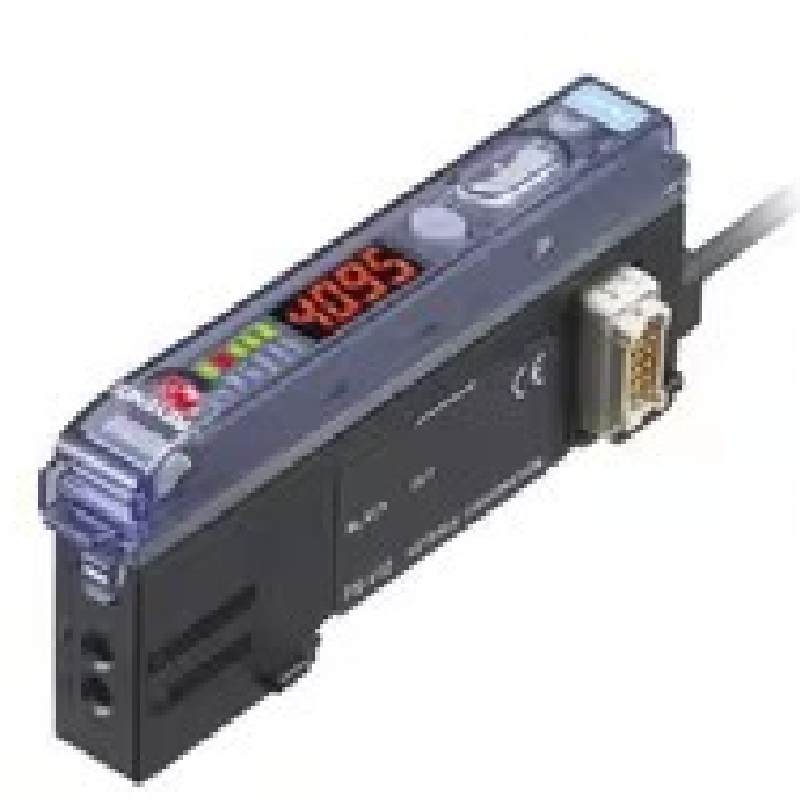

KEYENCE FS-V12 Fiber Amplifier, Cable Type, Expansion Unit, NPN
- Production lines
- Automation systems
- Quality control processes
- Packaging and labeling machines
The KEYENCE FS-V12 is a fiber amplifier used as an expansion unit with a cable connection. It features an NPN output and provides high-speed detection.
- Output Type: NPN
- Connector: Cable
- I/O: 1 output
- Response Time: 250 µs (Fine), 500 µs (Turbo), 1 ms (Super Turbo)
- Operation Mode: Light-ON/Dark-ON (switch-selectable)
- Indicator Lamp: Red LED display indicator, seven-segment four-digit red LED digital monitor, one orange LED and six green LED bar monitor
- Timer Function: ON-delay: 40 ms / OFF-delay: 10 ms / Timer OFF (switch-selectable)
- Control Output: NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
- Protection Circuit: Reverse polarity protection, over-current protection, surge absorber
- Unit Expansion: Up to 16 expansion units can be connected (total of 17 units)
- Power Voltage: 12 to 24 VDC ±10%, Ripple (P-P) 10% or less
- Power Consumption: 50 mA or less
- Environmental Resistance: Ambient light: 10,000 lux max. (incandescent lamp), 20,000 lux max. (sunlight)
- Operating Temperature: -10°C to +55°C (no freezing)
- Relative Humidity: 35 to 85% RH (no condensation)
- Vibration Resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock Resistance: 500 m/s², 3 times in each of the X, Y, and Z directions
- Case Material: Polycarbonate
