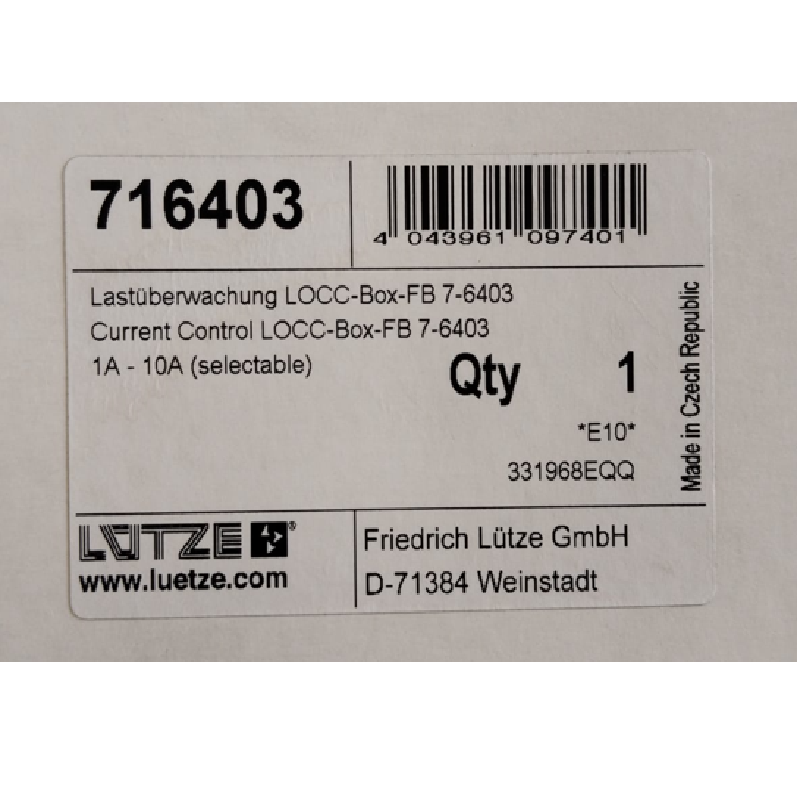

LUTZE 716403 LOCC BOX-FB 7-64013

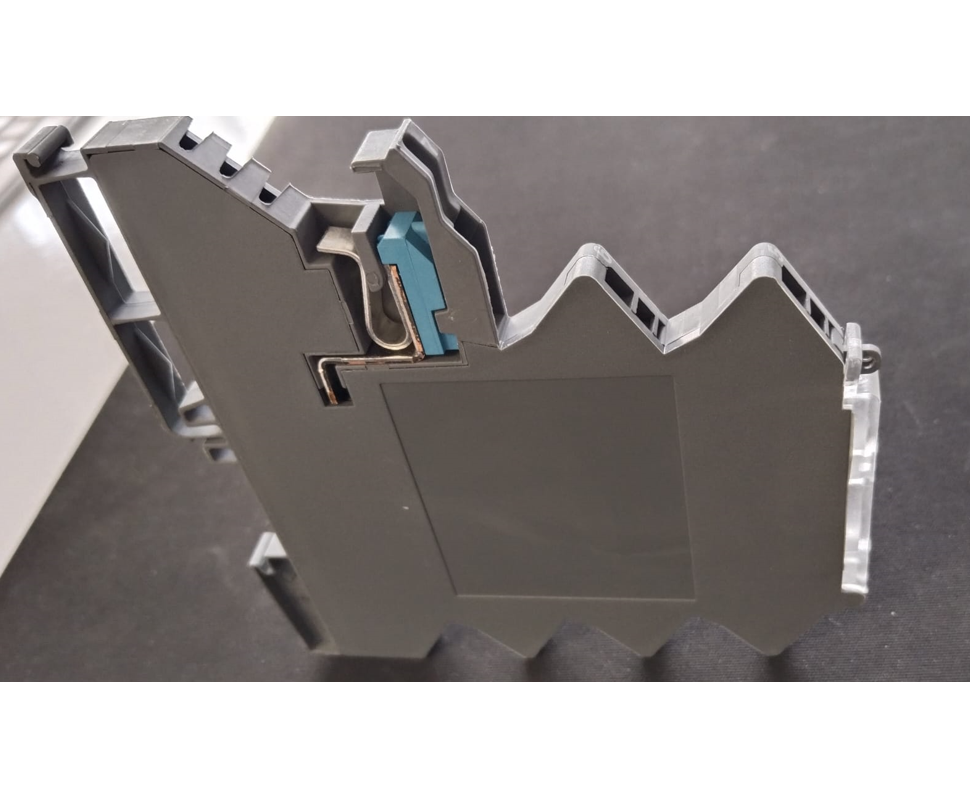

LUTZE 716403 LOCC BOX-FB 7-64013 Electronic Circuit Breaker

Industrial automation systems
Electrical panels
Overcurrent protection in DC 24V control circuits

You can become a member here to see prices and take advantage of other privileges.

Adet

Request an offer

Ask a question

The LUTZE 716403 LOCC BOX-FB 7-64013 is an electronic circuit breaker providing overcurrent protection in DC 24V control circuits. It offers reliable load monitoring and protection with adjustable current range and remote on/off/reset functions.

Operating Voltage: DC 10V - 30V
Current Range: 1 - 10A (adjustable in 1A steps)
Protection Feature: Adjustable characteristics (fast, medium, slow 1, slow 2, and slow 3)
Alarm Signal: Output alarm signal at 90% of the load setting
Remote Control: Remote reset and on/off functions
Width: 8.1 mm
LED Status Indicator: “Operation ON/OFF”, “fault”, “90% load”, “100% load”
Installation: Compact design, multi-directional installation
