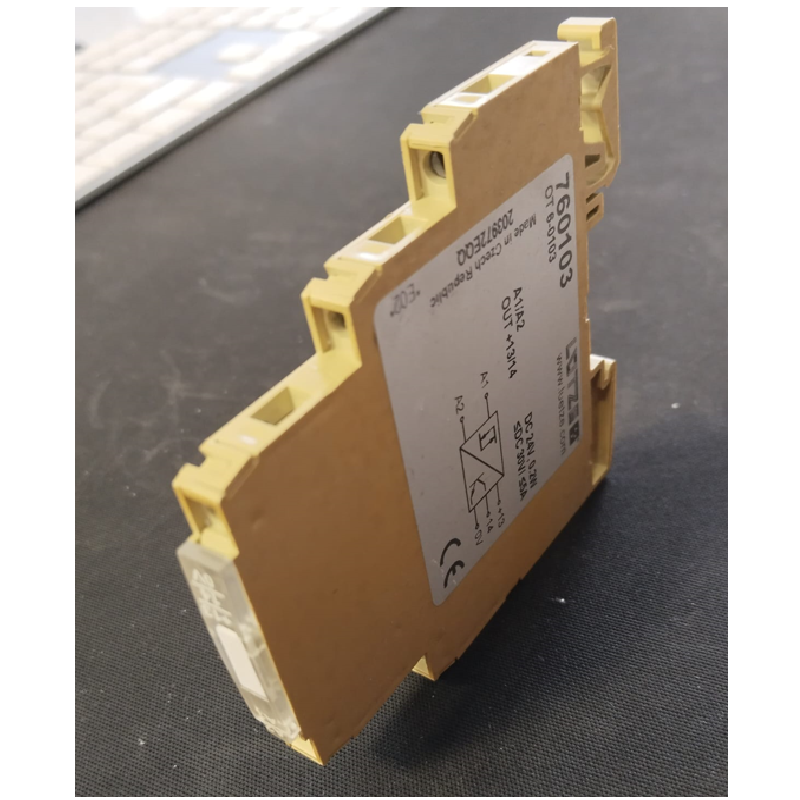

LUTZE 760103 OT 6-0103 DC 24V/5A BLOCK
Used in industrial automation systems, particularly in applications requiring fast and reliable switching.
You can become a member here to see prices and take advantage of other privileges.
The LUTZE 760103 OT 6-0103 is a micro-compact relay module with a 24V DC and 5A current capacity. It is equipped with short-circuit protection and monitoring features.
- Input voltage range: 10.0 V – 30.0 V
- Rated current: 7.0 mA
- Interrupting voltage: < 9 V
- Protection device: Suppressor diode
- Status indication: LED yellow, short circuit and wire breakage: LED red
- Switching element: Transistor, N/O contact – short circuit-proof
- Maximum switching current: DC 5 A
- Protection class: IP 20
- Operating temperature: -25 °C – 60 °C
- Storage temperature: -40 °C – 80 °C
- Dimensions: 6.2 x 78.0 x 86.0 mm
- Weight: 0.030 kg
