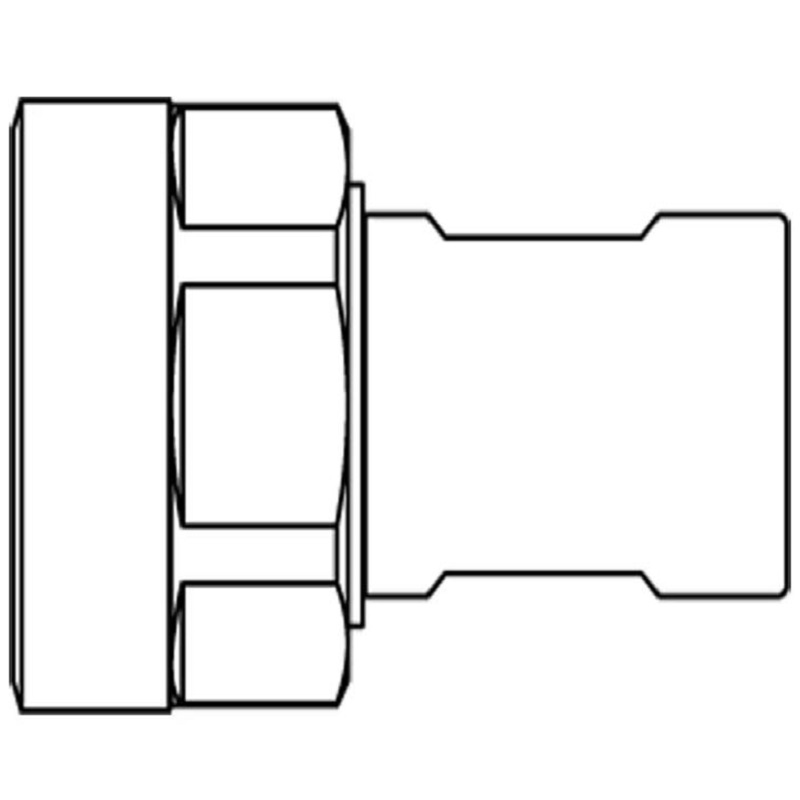

PARKER SK1020 R PLUG-NIPPLE + SK1010 R COUPLING BODY

Off-Shore Applications: Used in maritime and offshore applications.
Hydraulic Tools: Utilized in high-pressure hydraulic tools.
Corrosion-Resistant Systems: Resistant to corrosion due to stainless steel construction.

You can become a member here to see prices and take advantage of other privileges.

Adet

Request an offer

Ask a question

Parker SK1020 R and SK1010 R are high-pressure screw coupling systems. These products feature a double shut-off valve, ensuring no leakage and allowing connection under pressure.

Body Size: 1/4" and 3/8"
Connection Type: Female threaded connection
Thread Size: ISO-G 3/8 ORB
Length: 67 mm (SK1010 R), 43 mm (SK1020 R)
Hex Size: 41 mm (SK1010 R), 26 mm (SK1020 R)
Outer Diameter: 45 mm (SK1010 R), 40 mm (SK1020 R)
Maximum Working Pressure: 750 bar (SK1010 R), 1100 bar (SK1020 R)
Operating Temperature: -25 °C to +100 °C
Material: Stainless steel, NBR/FKM seals
