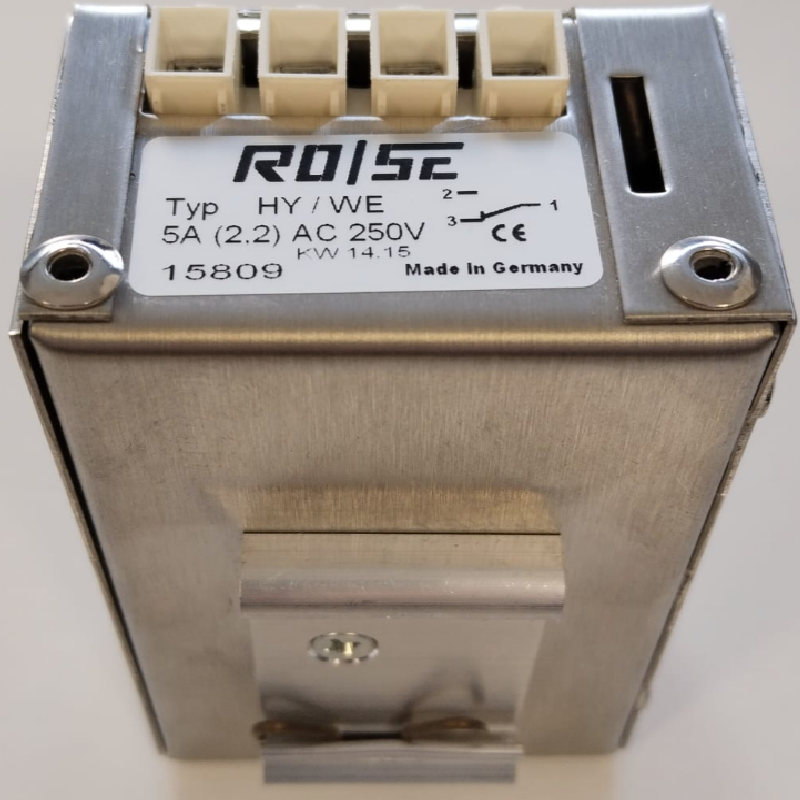

ROSE LM HEIZUNGEN 15809 typ hy/we Hygrostat HY/WE mechanical changeover contact
The Rose LM Heizungen 15809 Typ HY/WE Hygrostat is used to control humidity levels in industrial environments. This device is particularly suitable for electrical cabinets and enclosures.
You can become a member here to see prices and take advantage of other privileges.
The HY/WE Hygrostat is an electromechanical device used to adjust humidity levels. It opens or closes the circuit when a certain humidity level is reached, thus ensuring humidity control in the environment.
- Dimensions: 95 x 68 x 45 mm
- Mounting: 35 mm DIN rail clip
- Connection: 3-pole terminal, 0.2 - 4 mm²
- Operating Voltage: 230 V AC
- Contact Type: 1 changeover contact
- Protection Class: IP 20
- Humidity Setting Range: 10% - 80% relative humidity
- Operating Temperature: 10 - 40°C
