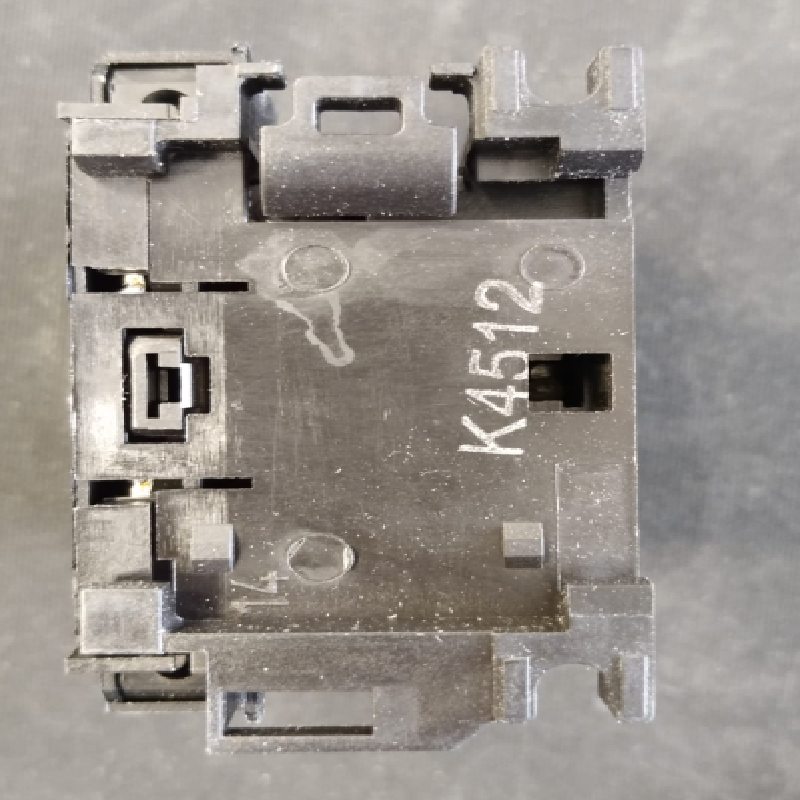

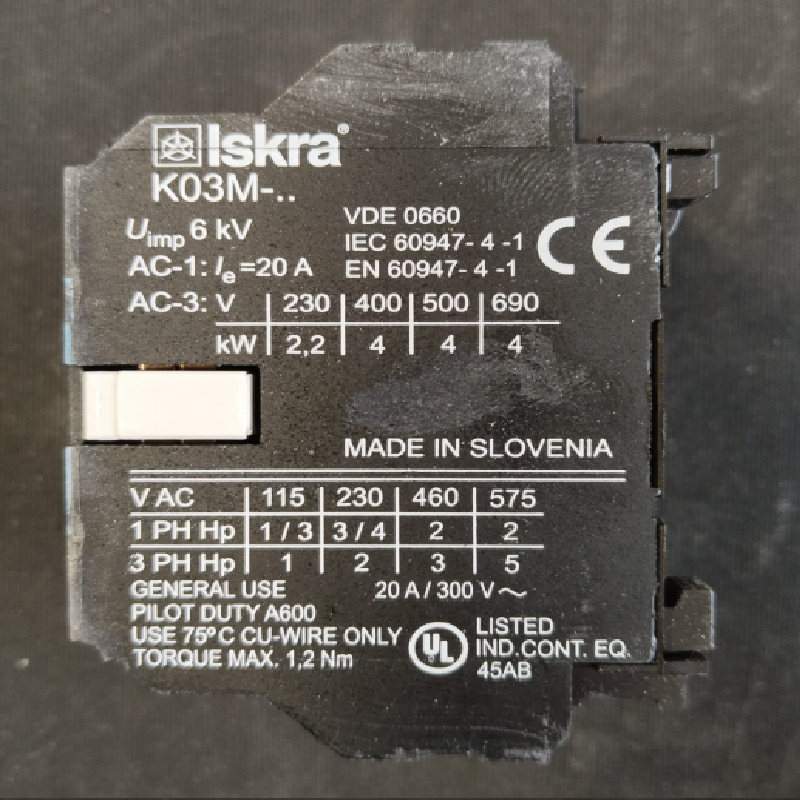

SPARK K03M-10 CONTACTOR ( LAMP DSL 3-10)
The ISKRA K03M-10 contactor is used for switching electric motors and other resistive, inductive, and capacitive loads.
You can become a member here to see prices and take advantage of other privileges.
The ISKRA K03M-10 is a contactor with high electrical and mechanical durability, offering high contact reliability at low voltages.
- Rated insulation voltage: 690V
- Rated impulse withstand voltage: 6kV
- Rated operational voltage: 690V
- Rated frequency: 50/60Hz
- Thermal current: 20A
- Operating temperature: -20°C to +60°C
- Storage temperature: -30°C to +80°C
