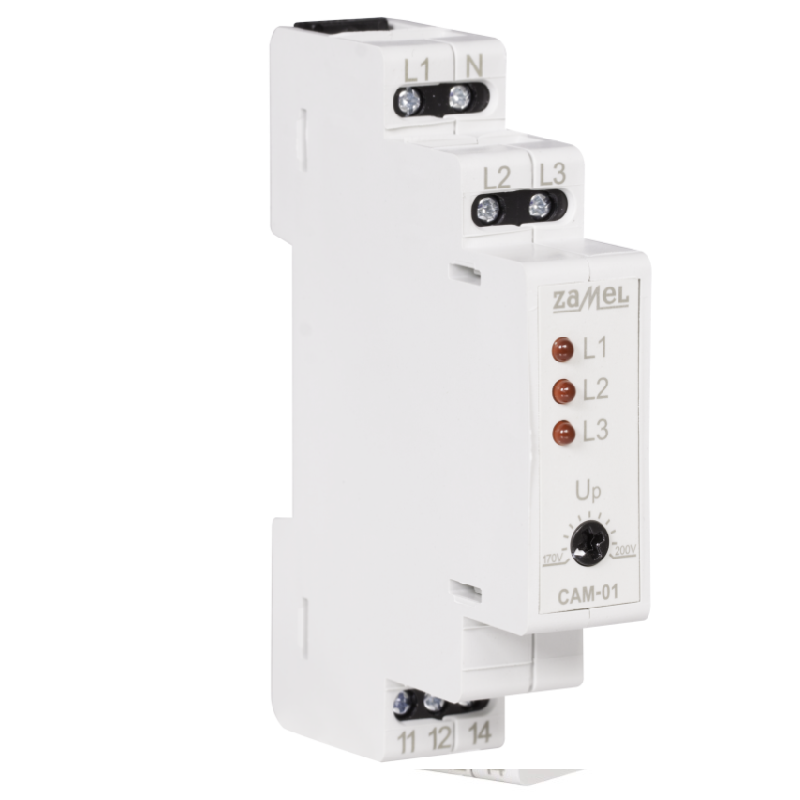

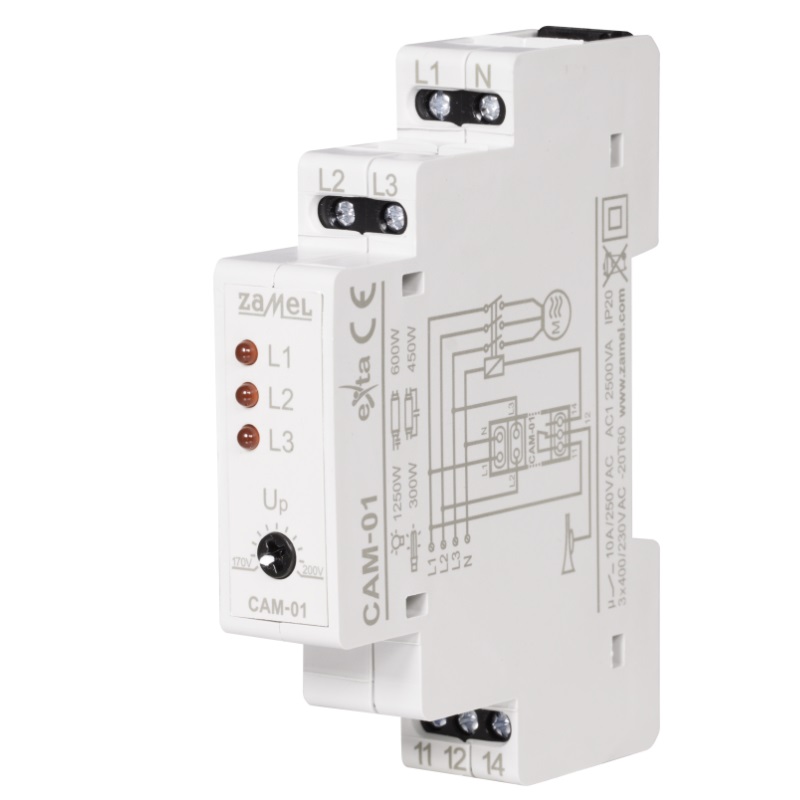

ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY
ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY
ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY
ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY
ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY
ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY

ZAMEL CAM-01 ASYMMETRY PHASE CONTROL RELAY

  • Protects devices in three-phase systems (e.g., motors) from phase voltage switch off or phase voltage asymmetry.
  • Provides protection against damage caused by network voltage issues.
You can become a member here to see prices and take advantage of other privileges.
Ask a question
  • User-adjustable voltage threshold.
  • Equipped with phase voltage indicators.
  • Resistant to momentary voltage drops.
  • Monomodular casing, TH-35 DIN rail installation.
  • Width: 18 mm
  • Height: 90 mm
  • Depth: 66 mm
  • Voltage measurement range: 170/200 V
  • Maximum delay time: 10 s
  • Minimum adjustable delay time: 5 s
  • Output relay parameters: 1NO/NC - 10 A / 250 V AC1 2500 VA
  • Operating temperature: -20 °C to +60 °C
  • Protection degree: IP20
